Mosaic Apartments

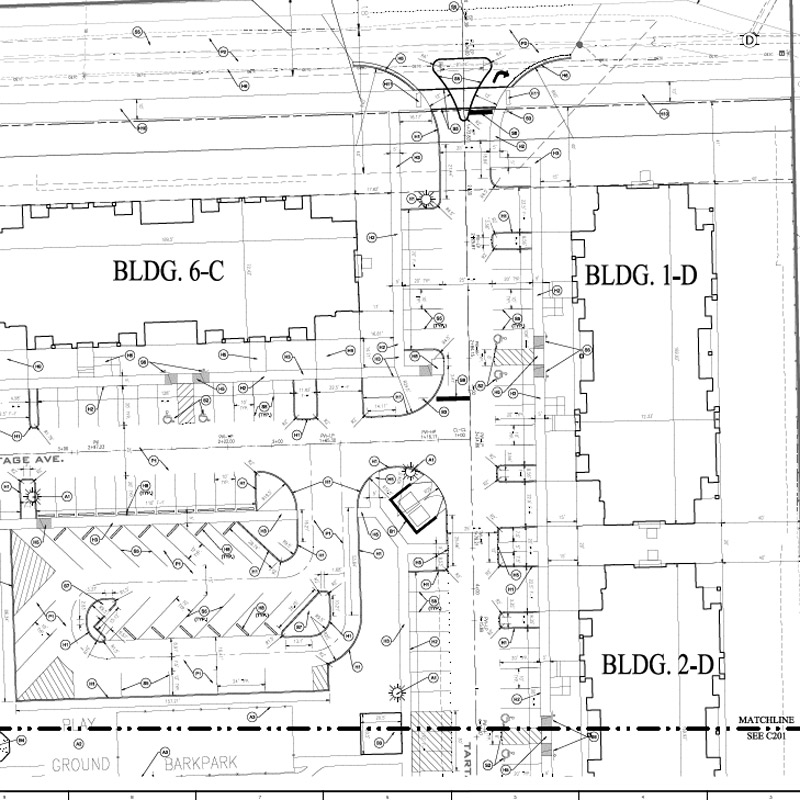

Site

  • 17.77 acres
  • 10 apartment buildings
  • 8 accessory buildings
  • 482 total parking spaces
  • 8155 Montage Ave.
    Avon, IN 46123 – Hendricks Co.

Scope

  • Civil Engineering and Permitting
  • Flood Plain Management
  • Hydraulic Modeling and Permitting
  • Construction Staking
  • As-Builts
  • As-Built ALTA Survey

Client

  • Herman & Kittle Properties, Inc.

Crossing the Finish Line

Mosaic is one of the newest of Herman & Kittle Properties multi-family communities. Some of the site was in a flood zone and an existing drainage ditch ran through the site. The ditch was moved slightly for future road-widening while protecting the client from the significant cost of relocating utility infrastructure. The drainage required a floodplain analysis. To obtain permits for the work with the flood zone as well as to update flood maps, a Letter of Map Revision based on fill (LOMR-F) was processed successfully through the IDNR, IDEM, the Army Corps of Engineers, and FEMA. Large ponds were excavated to accomplish low-cost earthwork balancing and underground detention was designed to satisfy the local storm water management requirements.
